DreamFactory ELK Stack & Grafana Integration Guide

This guide provides step-by-step instructions for installing and configuring Elasticsearch, Logstash, and Grafana to work with DreamFactory's Logstash connector for API activity monitoring and analytics.

Table of Contents

1. Prerequisites
2. Installation
   • Elasticsearch
   • Logstash
   • Grafana
3. Configuration
   • Elasticsearch Configuration
   • Logstash Configuration
   • Grafana Configuration
4. DreamFactory Integration
5. Dashboard Setup
6. Troubleshooting

---

Prerequisites

• Ubuntu Server (20.04 or later recommended)
• Root or sudo access
• Minimum 2GB RAM (4GB+ recommended)
• Java 11 or later
• DreamFactory instance with Logstash connector enabled

---

Installation

Step 1: Install Java

sudo apt update
sudo apt install -y openjdk-11-jdk

Step 2: Add Elasticsearch Repository

wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo apt-key add -
echo "deb https://artifacts.elastic.co/packages/8.x/apt stable main" | sudo tee /etc/apt/sources.list.d/elastic-8.x.list
sudo apt update

Step 3: Install Elasticsearch

sudo apt install -y elasticsearch

Step 4: Configure Elasticsearch Memory

For systems with limited RAM, reduce heap size:

sudo mkdir -p /etc/elasticsearch/jvm.options.d
sudo tee /etc/elasticsearch/jvm.options.d/heap.options << EOF
-Xms256m
-Xmx256m
EOF

Step 5: Start and Enable Elasticsearch

sudo systemctl daemon-reload
sudo systemctl enable elasticsearch
sudo systemctl start elasticsearch

Step 6: Verify Installation

Wait 30 seconds, then check status:

sudo systemctl status elasticsearch

Get the default password:

sudo /usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic

Test connection:

curl -k -u elastic:YOUR_PASSWORD https://localhost:9200

---

Step 1: Install Logstash

sudo apt install -y logstash

Step 2: Configure Logstash Memory

sudo tee /etc/logstash/jvm.options << EOF
-Xms256m
-Xmx256m
EOF

Step 3: Create Logstash Configuration

Create the DreamFactory configuration file:

sudo tee /etc/logstash/conf.d/dreamfactory.conf << 'EOF'
input {
  gelf {
    port => 12201
    type => "dreamfactory"
  }
}

filter {
  if [type] == "dreamfactory" {
    # Rename host field to avoid conflict with ECS (Elastic Common Schema) host object
    # Note: ECS is a vendor-neutral standard that works across all cloud providers and on-premise
    if [host] {
      mutate {
        rename => { "host" => "source_hostname" }
      }
    }

    # Add host information as object for ECS compatibility
    # This follows the ECS standard and works on AWS, Azure, GCP, on-premise, etc.
    mutate {
      add_field => {
        "log_source" => "dreamfactory"
        "[host][name]" => "%{source_hostname}"
      }
    }

    # Parse log level if present
    if [level] {
      mutate {
        uppercase => [ "level" ]
      }
    }

    # Extract user_id from JWT session token
    ruby {
      code => '
        begin
          # Access nested field directly
          event_data = event.get("event")
          if event_data && event_data.is_a?(Hash)
            request_data = event_data["request"]
            if request_data && request_data.is_a?(Hash)
              headers = request_data["headers"]
              if headers && headers.is_a?(Hash)
                token = headers["x-dreamfactory-session-token"]
                if token && token.is_a?(String) && token.include?(".")
                  parts = token.split(".")
                  if parts.length >= 2
                    payload_b64 = parts[1]
                    # Add padding for base64 URL-safe decoding
                    padding = (4 - payload_b64.length % 4) % 4
                    payload_b64 += "=" * padding
                    # Decode and parse
                    require "base64"
                    require "json"
                    payload_json = Base64.urlsafe_decode64(payload_b64)
                    payload = JSON.parse(payload_json)
                    if payload["user_id"]
                      event.set("[user][id]", payload["user_id"])
                    end
                  end
                end
              end
            end
          end
        rescue => e
          # Silently fail
        end
      '
    }
  }
}

output {
  elasticsearch {
    hosts => ["https://localhost:9200"]
    user => "elastic"
    password => "YOUR_ELASTICSEARCH_PASSWORD"
    ssl_enabled => true
    ssl_verification_mode => "none"
    index => "logstash-dreamfactory-%{+YYYY.MM.dd}"
  }
}
EOF

Important: Replace YOUR_ELASTICSEARCH_PASSWORD with the password you obtained in Step 6 of Elasticsearch installation.

Step 4: Set File Permissions

sudo chown logstash:logstash /etc/logstash/conf.d/dreamfactory.conf
sudo chmod 644 /etc/logstash/conf.d/dreamfactory.conf

Step 5: Test Configuration

sudo /usr/share/logstash/bin/logstash --path.settings=/etc/logstash --config.test_and_exit

Step 6: Start and Enable Logstash

sudo systemctl daemon-reload
sudo systemctl enable logstash
sudo systemctl start logstash

Step 7: Verify Installation

sudo systemctl status logstash
sudo tail -f /var/log/logstash/logstash-plain.log

---

Step 1: Install Dependencies

sudo apt install -y software-properties-common
sudo add-apt-repository "deb https://packages.grafana.com/oss/deb stable main"

Step 2: Add Grafana GPG Key

wget -q -O - https://packages.grafana.com/gpg.key | sudo apt-key add -
sudo apt update

Step 3: Install Grafana

sudo apt install -y grafana

Step 4: Start and Enable Grafana

sudo systemctl daemon-reload
sudo systemctl enable grafana-server
sudo systemctl start grafana-server

Step 5: Access Grafana Web UI

Open your browser and navigate to:

http://YOUR_SERVER_IP:3000

Default credentials: - Username: admin - Password: admin (you'll be prompted to change it)

---

Configuration

Basic Security Settings

Elasticsearch 8.x has security enabled by default. The default user is elastic with a randomly generated password.

Index Management

Logs are automatically indexed with the pattern: logstash-dreamfactory-YYYY.MM.dd

View indices:

curl -k -u elastic:YOUR_PASSWORD https://localhost:9200/_cat/indices?v

---

Key Configuration Points

1. GELF Input: Listens on UDP port 12201 for Graylog Extended Log Format (GELF) messages from DreamFactory
2. JWT Extraction: Extracts user_id from DreamFactory session tokens and adds it as user.id field
3. Field Mapping: Renames host to source_hostname to avoid Elasticsearch mapping conflicts
4. ECS Compatibility: Uses Elastic Common Schema (ECS) standard for host.name field - this is vendor-neutral and works across all cloud providers (AWS, Azure, GCP, etc.) and on-premise installations
5. Index Pattern: Creates daily indices for better performance and management

Verify Logstash is Receiving Logs

sudo netstat -tlnp | grep 12201

Check Logstash Logs

sudo tail -f /var/log/logstash/logstash-plain.log

---

Step 1: Add Elasticsearch Data Source

1. Go to Configuration → Data Sources
2. Click Add data source
3. Select Elasticsearch
4. Configure:
   • Name: DreamFactory Logs
   • URL: https://localhost:9200
   • Access: Server (default)
   • Basic Auth: Enabled
     • User: elastic
     • Password: Your Elasticsearch password
   • TLS/SSL Mode: Skip TLS Verification
   • Index name: logstash-dreamfactory-*
   • Time field: @timestamp
   • Version: 8.0+
5. Click Save & Test

Step 2: Add Infinity Data Source (for User Enrichment)

Prerequisites: Create a Least-Privilege API Key

Before configuring the Infinity data source, create a DreamFactory API key with minimal permissions:

1. Log into DreamFactory Admin Console
2. Navigate to Roles → Create a new role (e.g., "Grafana Read-Only")
3. Set Role Permissions (see Role-Based Access Control for detailed information):
   • Service: system
   • Component: user
   • Access: GET only (read-only)
   • Fields: Allow access to: id, first_name, last_name, email (user/* in the Component section will give permission to view all user fields if needed)
4. Create API Key:
   • Go to Users → Select or create a user
   • Assign the "Grafana Read-Only" role to the user
   • Generate an API key for this user
   • Note: This API key will only have read access to user data, not full admin access

Alternative: Use Existing Role with Limited Permissions - If you have a read-only role, you can use an existing API key with that role - Ensure the role has GET access to system/user endpoint

Configure Infinity Data Source:

1. Install Infinity plugin (if not already installed):

   sudo grafana-cli plugins install yesoreyeram-infinity-datasource
   sudo systemctl restart grafana-server


2. Go to Configuration → Data Sources

3. Click Add data source

4. Select Infinity

5. Configure:

   • Name: DreamFactory API
   • URL: http://localhost (or your DreamFactory URL)
   • Authentication: API Key
     • Add header: X-DreamFactory-API-Key with your least-privilege API key (created in the Prerequisites section above)
     • Security Note: Use the read-only API key, not an admin key

6. Click Save & Test

---

DreamFactory Integration

Step 0: Create Least-Privilege API Key for Grafana

The Infinity data source only needs read access to user data. Create a minimal-permission API key:

Option 1: Create a Custom Read-Only Role (Recommended)

1. Log into DreamFactory Admin Console
2. Navigate to: Roles → Create Role
3. Role Configuration:
   • Name: grafana-readonly (or similar)
   • Description: Read-only access for Grafana user enrichment
4. Set Service Access:
   • Service: system
   • Component: user
   • Access: GET only
   • Fields: id, first_name, last_name, email (or leave blank for all fields)
5. Save the role

Option 2: Use Existing Read-Only Role

If you already have a read-only role with system/user GET access, you can use that.

Create API Key with the Role

1. Navigate to: Users → Select a user (or create a dedicated user like grafana-service)
2. Assign Role: Add the grafana-readonly role to the user
3. Generate API Key:
   • Go to the user's profile
   • Generate or copy the API key
   • Store securely - this key will be used in Grafana configuration

---

Step 1: Enable Logstash Connector in DreamFactory

1. Log into DreamFactory Admin Console
2. Navigate to Services → System → Logstash
3. Enable the Logstash connector
4. Configure:
   • Host: localhost (or your Logstash server IP)
   • Port: 12201
   • Protocol: GELF (UDP)
   • Log Context: Request All Service Event: (These are the Events necessary to integrate Logstash with our template Grafana Dashboard)
   • Event: user.* | Log level: INFO | Message: System Activity
   • Event: db.* | Log Level: INFO | Default Database Activity (db is a local SQLite database typically included with all DreamFactory installations)
   • Event: files.* | Log Level: INFO| File Activity
   • To add your own Database or other service connection start typing the name of your service and select the service followed by * or your specfic criteria
5. Save configuration

Step 2: Verify Logs are Being Sent

Check if DreamFactory is sending logs: (Generate some API requests or logins to see them appear in the logs)

sudo tcpdump -i any -n udp port 12201

Or check Logstash logs:

sudo tail -f /var/log/logstash/logstash-plain.log | grep dreamfactory

Step 3: Verify Logs in Elasticsearch

curl -k -u elastic:YOUR_PASSWORD "https://localhost:9200/logstash-dreamfactory-*/_search?size=1&pretty"

---

Dashboard Setup

Panel 1: Total API Calls by User

Purpose: Shows the total number of API calls made by each user with email enrichment.

Query Configuration: - Data Source: DreamFactory Logs (Elasticsearch) - Query Type: Count - Query: user.id:* event.request.method:* - Bucket Aggregations: - Terms: user.id (Size: 50, Order: Desc by _count) - Time Field: @timestamp

Second Query (for email enrichment): - Data Source: DreamFactory API (Infinity) - Type: JSON - URL: /api/v2/system/user?fields=id,first_name,last_name,email&limit=100 - Parser: Backend - Root Selector: resource

Transformations: 1. Join by field: Join query A and B on user.id (Mode: Outer) 2. Organize fields: - Exclude: first_name B, last_name B, user.id, user.id 1, user.id 2 - Rename: Count → Total API Calls, email B → User Email 3. Filter data by values: - Field: Total API Calls - Condition: IS NOT NULL

Field Mappings: - Map empty/null email values to "Admin User"

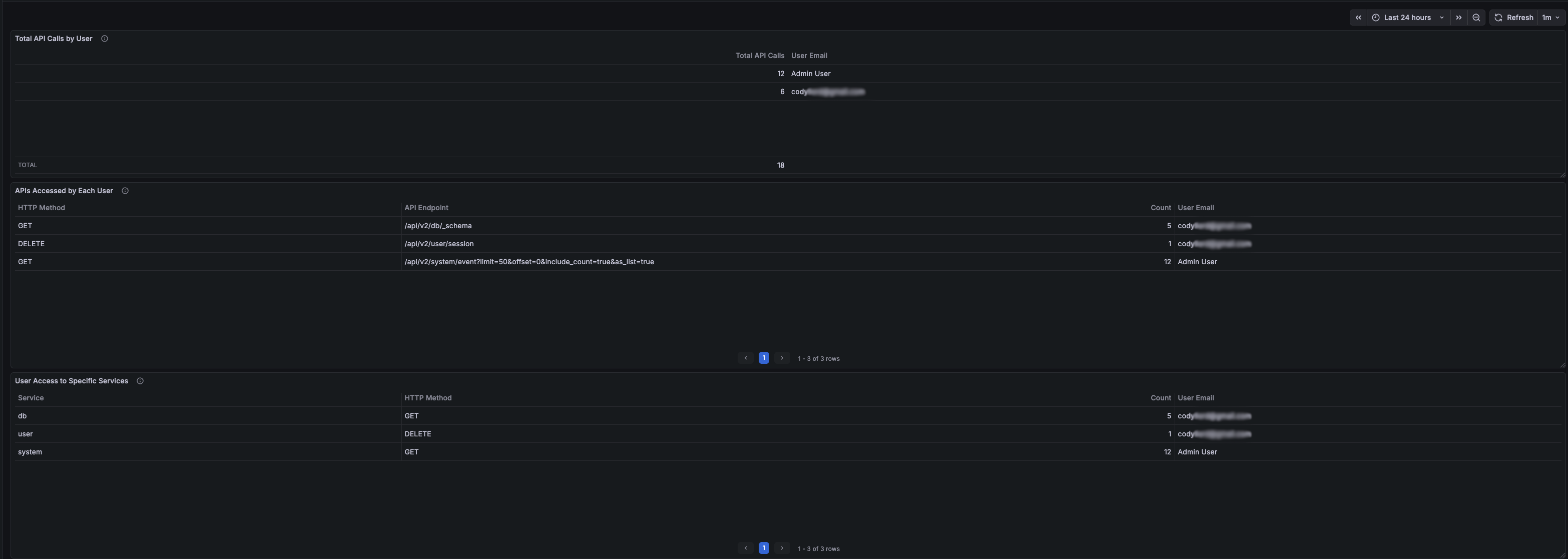

The Dashboard should end up looking similar to this:

<a href="#lightbox-grafana-dashboard">

Grafana Dashboard Template

</a> <a href="#" className="lightbox-overlay" id="lightbox-grafana-dashboard"> ×

Grafana Dashboard Template

</a>

When there are no calls in the selected time frame for a user the panels should all be empty as the filters we applied should remove any row with no calls.

---

Panel 2: APIs Accessed by Each User

Purpose: Shows which specific API endpoints each user accessed with HTTP method details.

Query Configuration: - Data Source: DreamFactory Logs (Elasticsearch) - Query Type: Count - Query: user.id:* event.request.method:* event.request.uri:* - Bucket Aggregations: 1. Terms: user.id (Size: 20, Order: Desc by _count) 2. Terms: event.request.method.keyword (Size: 10, Order: Desc by _count) 3. Terms: event.request.uri.keyword (Size: 25, Order: Desc by _count) - Time Field: @timestamp

Second Query (for email enrichment): - Same as Panel 1

Transformations: 1. Join by field: Join on user.id (Mode: Outer Tabular) 2. Organize fields: - Exclude: first_name B, last_name B, user.id, user.id 1, user.id 2 - Rename: - email B → User Email - event.request.method.keyword → HTTP Method - event.request.uri.keyword → API Endpoint 3. Filter data by values: - Field: Count (or your count column) - Condition: IS NOT NULL

---

Panel 3: User Access to Specific Services

Purpose: Shows which DreamFactory services each user accessed.

Query Configuration: - Data Source: DreamFactory Logs (Elasticsearch) - Query Type: Count - Query: user.id:* event.request.method:* event.request.service:* - Bucket Aggregations: 1. Terms: user.id (Size: 20, Order: Desc by _count) 2. Terms: event.request.service.keyword (Size: 15, Order: Desc by _count) 3. Terms: event.request.method.keyword (Size: 10, Order: Desc by _count) - Time Field: @timestamp

Second Query (for email enrichment): - Same as Panel 1

Transformations: 1. Join by field: Join on user.id (Mode: Outer Tabular) 2. Organize fields: - Exclude: first_name B, last_name B, user.id, user.id 1, user.id 2 - Rename: - email B → User Email - event.request.method.keyword → HTTP Method - event.request.service.keyword → Service 3. Filter data by values: - Field: Count - Condition: IS NOT NULL

---

Dashboard Settings

Time Range: Set to "Last 24 hours" (adjustable) Refresh Interval: 1 minute (recommended) Tags: dreamfactory, users, api, activity

---

Dashboard Function and Use

Overview

The dashboard provides comprehensive visibility into DreamFactory API usage by individual users, helping administrators:

1. Monitor User Activity: See which users are actively using the API
2. Identify API Usage Patterns: Understand which endpoints and services are most accessed
3. Troubleshoot Issues: Track user-specific API calls for debugging
4. Security Auditing: Monitor API access patterns for security analysis

User Identification

• User ID Extraction: Automatically extracts user IDs from JWT session tokens
• Email Enrichment: Joins with DreamFactory user database to show email addresses
• Admin User Handling: Maps null/empty emails to "Admin User" for system-level operations

Data Filtering

• Method-Based Filtering: Only shows users with actual HTTP method calls (GET, POST, etc.)
• Complete Data Only: Filters out rows with missing data using transformation filters
• Real-Time Updates: Refreshes every minute to show current activity

Aggregation Levels

1. User-Level: Total calls per user
2. Endpoint-Level: Specific API endpoints accessed
3. Service-Level: DreamFactory services accessed (db, system, files, etc.)

Use Cases

1. Activity Monitoring
   • Identify most active users
   • Track API usage trends
   • Monitor system load by user
2. Troubleshooting
   • Find which user made a specific API call
   • Track user-specific errors
   • Debug authentication issues
3. Security Auditing
   • Monitor unusual access patterns
   • Track service access by user
   • Identify potential security issues
4. Capacity Planning
   • Understand API usage patterns
   • Plan for user growth
   • Optimize service performance

Interpreting the Data

• Total API Calls: Sum of all HTTP requests made by a user
• HTTP Method: Type of request (GET, POST, PUT, DELETE, etc.)
• API Endpoint: Specific DreamFactory API path accessed
• Service: DreamFactory service category (db, system, files, etc.)
• User Email: Email address from DreamFactory user database (or "Admin User" for system operations)

---

Maintenance

Regular Tasks

1. Monitor Disk Space: Elasticsearch indices can grow large

   curl -k -u elastic:YOUR_PASSWORD "https://localhost:9200/_cat/indices?v"


2. Index Management: Consider setting up index lifecycle management

   # Delete old indices (example: older than 30 days)
   curl -k -u elastic:YOUR_PASSWORD -X DELETE "https://localhost:9200/logstash-dreamfactory-2024.12.*"


3. Log Rotation: Monitor Logstash logs

   sudo logrotate -d /etc/logrotate.d/logstash


4. Performance Monitoring: Check Elasticsearch cluster health

   curl -k -u elastic:YOUR_PASSWORD "https://localhost:9200/_cluster/health?pretty"


   ---

   If you have any issues or need help with a specifc Grafana dashboard panel please reach out to DreamFactory support!
