Azure Active Directory OAuth Setup Guide

This guide will walk you through setting up Azure Active Directory (Azure AD/Entra ID) OAuth authentication with DreamFactory.

Prerequisites

• An Azure Active Directory (Entra ID) tenant
• Access to your DreamFactory admin application
• Appropriate permissions in Azure AD to register applications

Step 1: Azure AD Application Registration

1.1 Create App Registration

1. Sign in to the Azure Portal
2. Navigate to Azure Active Directory (or Microsoft Entra ID)
3. Go to App registrations in the left sidebar
4. Click New registration
5. Fill in the application details:
   • Name: Enter a name for your application (e.g., "DreamFactory OAuth")
   • Supported account types: Can be set to Single tenant (accounts in this organizational directory only)
   • Redirect URI: Leave blank for now (we'll configure this after creating the DreamFactory service)
6. Click Register

1.2 Configure Authentication Settings

1. In your newly created app registration, navigate to Authentication in the left sidebar
2. Under settings, enable Allow public client flows by setting it to enabled
3. Click Save

1.3 Create Client Secret

1. Navigate to Certificates & secrets in the left sidebar
2. Click New client secret
3. Add a description (e.g., "DreamFactory OAuth Secret")
4. Choose an expiration period
5. Click Add
6. Important: Copy the secret Value immediately and save it securely. You will not be able to view it again after leaving this page. This value will be used as the Client Secret in DreamFactory.

1.4 Configure Token Claims

1. Navigate to Token configuration in the left sidebar
2. Click Add optional claim
3. Select ID token type
4. Check the following claims:
   • email
   • upn (User Principal Name)
5. Click Add
6. Click Save

1.5 Configure API Permissions

1. Navigate to API permissions in the left sidebar
2. Click Add a permission
3. Select Microsoft Graph
4. Select Delegated permissions
5. Add the following permissions: (there is a search bar to make finding some of these options easier)
   • email
   • openid
   • profile
   • User.Read
6. Click Add permissions
7. Click Grant admin consent for your organization (if you have admin rights) to ensure users don't need to consent individually

1.6 Expose API and Create Scope

1. Navigate to Expose an API in the left sidebar
2. Click Set next to "Application ID URI" if not already set (this will use the default format)
3. Click Add a scope
4. Configure the scope:
   • Scope name: Enter a name (e.g., "access_as_user")
   • Who can consent?: Select the appropriate option based on who will be using the authentication:
     • Admins and users - All users can consent
     • Admins only - Only administrators can consent
   • Admin consent display name: Enter a display name (e.g., "Access DreamFactory")
   • Admin consent description: Enter a description (e.g., "Allow the application to access DreamFactory on behalf of the signed-in user")
   • User consent display name: Enter a display name
   • User consent description: Enter a description
   • State: Set to Enabled
5. Click Add scope
6. Important: Copy the Application ID URI (it will look like api://<Application-ID> or https://<your-tenant>.onmicrosoft.com/<Application-ID>). This URI will be used as the Resource field in DreamFactory service creation.

1.7 Collect Required Information

Before proceeding to DreamFactory configuration, collect the following information from your Azure AD app registration:

• Application (client) ID: Found on the Overview page
• Directory (tenant) ID: Found on the Overview page
• Client Secret Value: The secret value you saved from step 1.3
• Application ID URI (Resource): The URI from step 1.6

Step 2: DreamFactory Configuration

2.1 Access DreamFactory Admin

1. Open your DreamFactory admin web interface and sign in

2.2 Create User Role (if needed)

1. Navigate to API Generation & Connections > Role based Access
2. Create a role for users who will sign in via Azure AD OAuth (if you don't already have an appropriate role)
3. Configure the role permissions according to your requirements
4. Note the role name for use in the next step

2.3 Create OAuth Service

1. Navigate to Security > Authentication
2. Click Create to create a new authentication service
3. Select Azure Active Directory OAuth as the service type
4. Fill in the service configuration:

Basic Configuration

Field	Description
Namespace	A required field that must end with _oauth (e.g., azuread_oauth)
Label	The display name for the service (e.g., "Azure AD" or "Sign in with Microsoft")
Description	(Optional) A brief description of the service
Active	Enable this toggle to activate the service

OAuth Configuration

Field	Description
Client ID	Enter the Application (client) ID from Azure AD (Step 1.7)
Client Secret	Enter the Client Secret Value from Azure AD (Step 1.7)
Redirect URL	Enter your DreamFactory redirect URL. This should be in the format: https://your-dreamfactory-instance.com/api/v2/yournamespace_oauth/sso (replace yournamespace_oauth with your actual namespace)
Default Role	Select the role that will be applied by default to authenticated users
Icon Class	(Optional) CSS class for an icon

Azure AD Specific Fields

Field	Description
Tenant ID	Enter the Directory (tenant) ID from Azure AD (Step 1.7)
Resource	Enter the Application ID URI from Azure AD (Step 1.6). This is the scope URI you created in the "Expose an API" section

5. Click Save to create the service

2.4 Update Azure AD Redirect URI

1. Return to your Azure AD app registration in the Azure Portal
2. Navigate to Authentication
3. Under Platform configurations, click Add redirect URI (if no redirect URI is configured) or click on the existing web platform
4. Add the Redirect URL you configured in DreamFactory (from Step 2.3)
5. Click Save

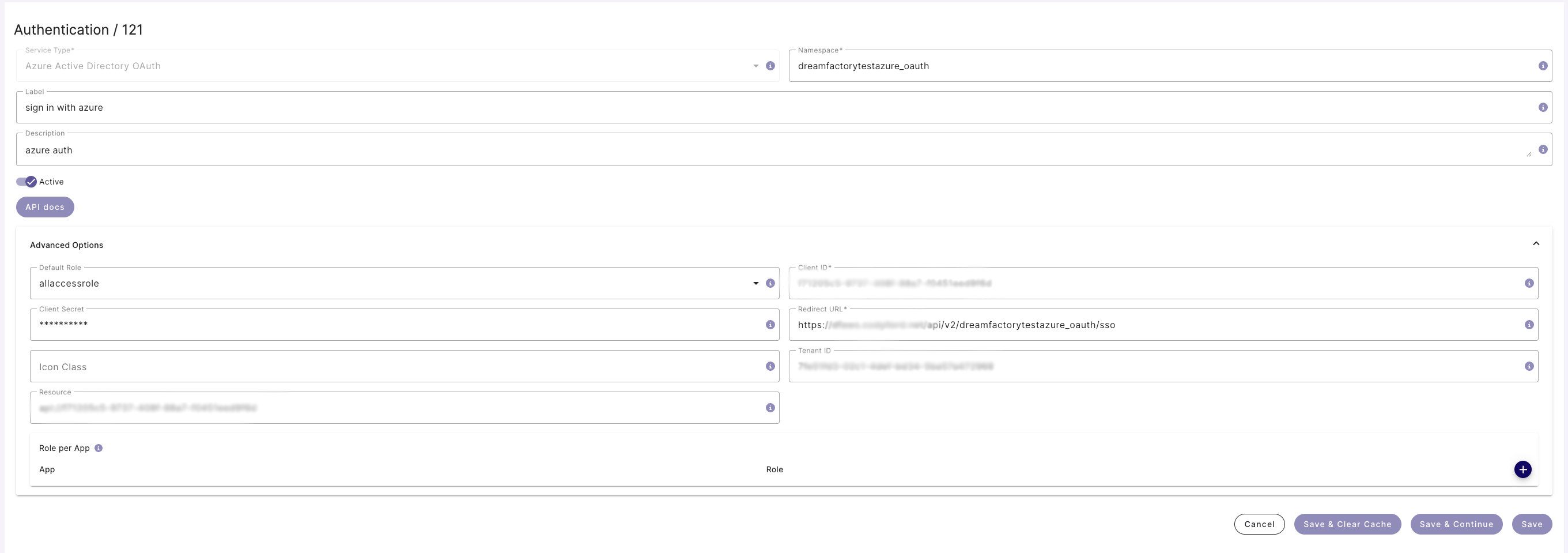

The service should look like this once complete:

[[img/authentication-apis/azure-oauth-config/dfconfigazureoauth.png|

Azure AD OAuth Configuration in DreamFactory

]]

Step 3: Testing the Integration

3.1 Test Authentication

1. Navigate to your DreamFactory login page (sometimes immediately after creating the service you will need to hard refresh the browser or open the login page from an incognito browser)
2. You should see a button for your Azure AD OAuth service (using the Label you configured)
3. Click the button to initiate the OAuth flow
4. You will be redirected to Microsoft's login page
5. After successful authentication, you will be redirected back to DreamFactory with a JWT token

3.2 Verify User Access

1. After successful authentication, verify that the user has the appropriate role assigned
2. Test API access to ensure the user can access the resources they should have permission for

Step 4: Additional Configuration

4.1 Configure CORS

Important: Don't forget to add your application and Microsoft/Azure AD domains to DreamFactory > Config > CORS. For detailed instructions on configuring CORS settings, see our CORS and SSL documentation.

4.2 Role per App (Optional)

If you need to assign different roles based on the application being accessed:

1. In your OAuth service configuration, navigate to the Role per App section
2. Configure specific roles for different applications as needed

Troubleshooting

Common Issues

• "Invalid client" error: Verify that the Client ID and Client Secret are correct in DreamFactory
• "Invalid redirect URI" error: Ensure the redirect URI in Azure AD matches exactly with the one in DreamFactory (including protocol, domain, and path)
• "Insufficient permissions" error: Verify that all required API permissions are granted and admin consent is provided
• Missing email or UPN claims: Ensure you've added the optional claims for email and UPN in the Token configuration
• "Public client flows not allowed" error: Ensure "Allow public client flows" is enabled in Azure AD Authentication settings

Next Steps

Your Azure AD OAuth integration is now complete! Users can sign in through Azure AD/Entra ID and access DreamFactory with the appropriate permissions based on their assigned roles.

For more information about authentication in DreamFactory, see the Authenticating your APIs documentation.
